SELF DRILLING SCREWS
Features Of Self Drilling Screws:
Self-drilling screws stand as a revolutionary solution in the realm of fastening, offering efficiency and adaptability across a spectrum of applications. Featuring a cutting edge and threading, these screws eliminate the need for pre-drilling, streamlining the fastening process and providing a convenient solution.
Size Chart
| SCREW TYPE | SCREW SIZE | LENGTH (INCH) | LENGTH (MM) | APPLICATION |
|---|---|---|---|---|
| CSK Head Self Drilling Screw | M3.5 #6 M3.9 #7 M4.2 #8 M4.8 #10 | 0.5 – 2.00 0.9 – 2.00 0.5 – 4.00 1.00 – 3.00 | 13 – 50 19 – 50 13 – 100 25 – 100 | Metal to Metal Connections Wood to Metal Connections Flush Finish Requirements |
| Pan Head Self Drilling Screw | M3.5 #6 M4.2 #8 M4.8 #10 | 0.5 – 1.00 0.5 – 3.00 1.00 – 3.00 | 13 – 25 13 – 75 25 – 75 | Versatile Application, Suitable for Larger Surface Areas In Metal And Wood |
| Truss Head Self Drilling Screw | M3.5 #6 M4.2 #8 | 0.5 – 1.00 0.5 – 3.00 | 13 – 25 13 – 75 | Structural Farming, High Load Bearing Application |
Diverse Varieties of Self Drilling Screws

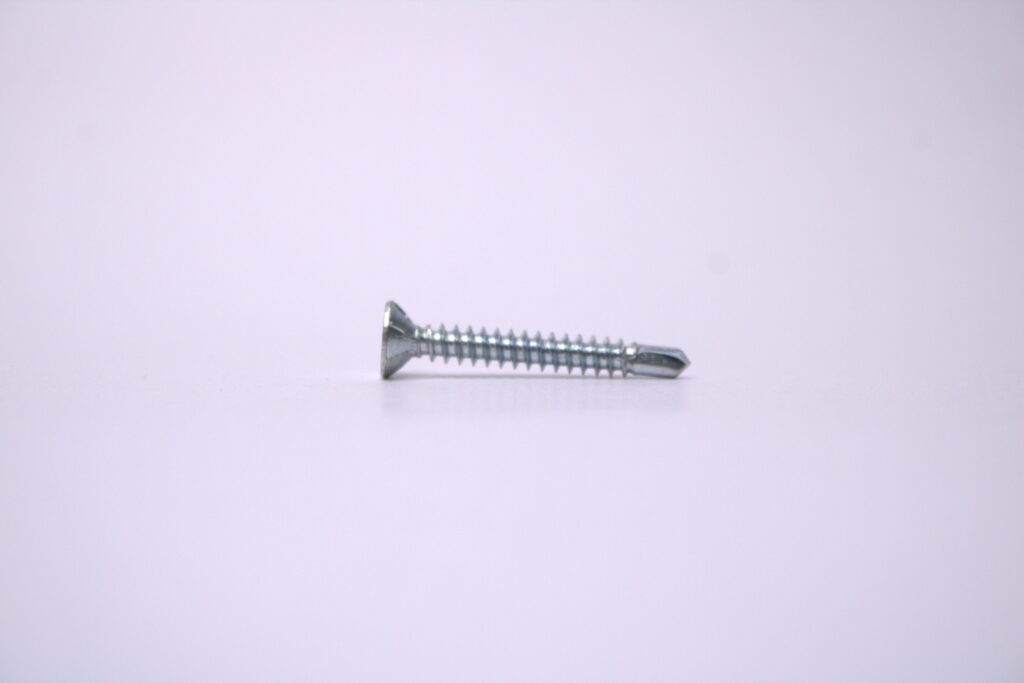

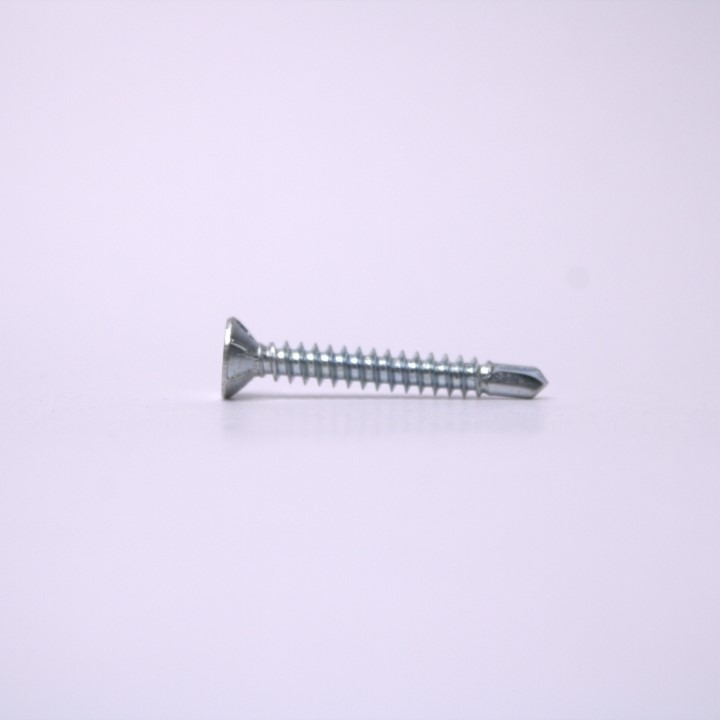

CSK Head Self-Drilling Screws
Distinguished by a countersunk (CSK) head.

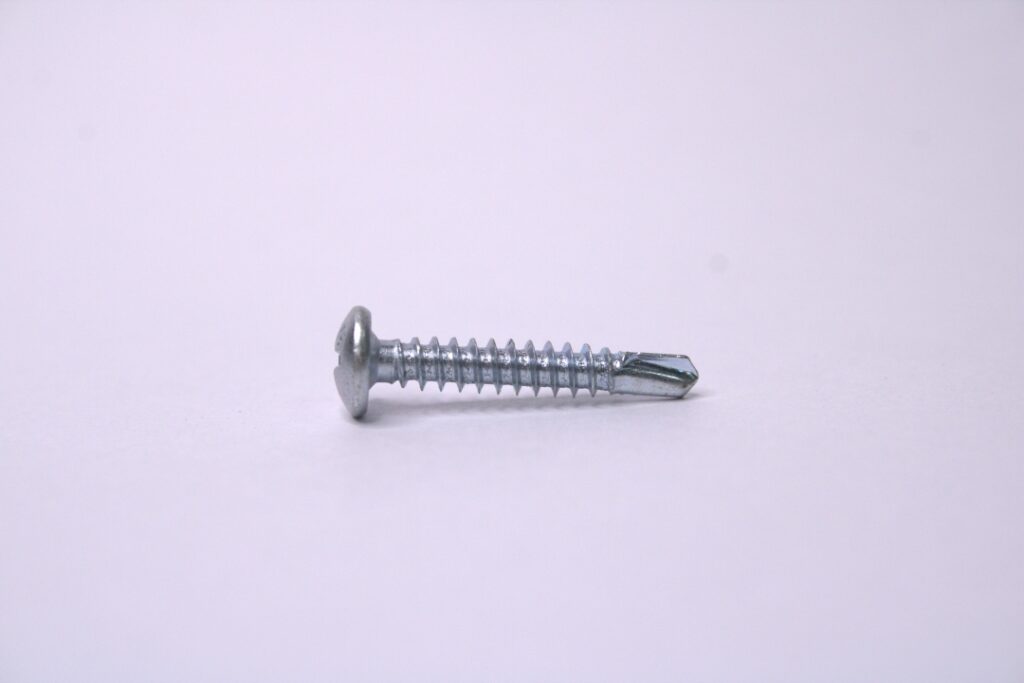

Pan Head Self-Drilling Screws
Features a flat, rounded head design

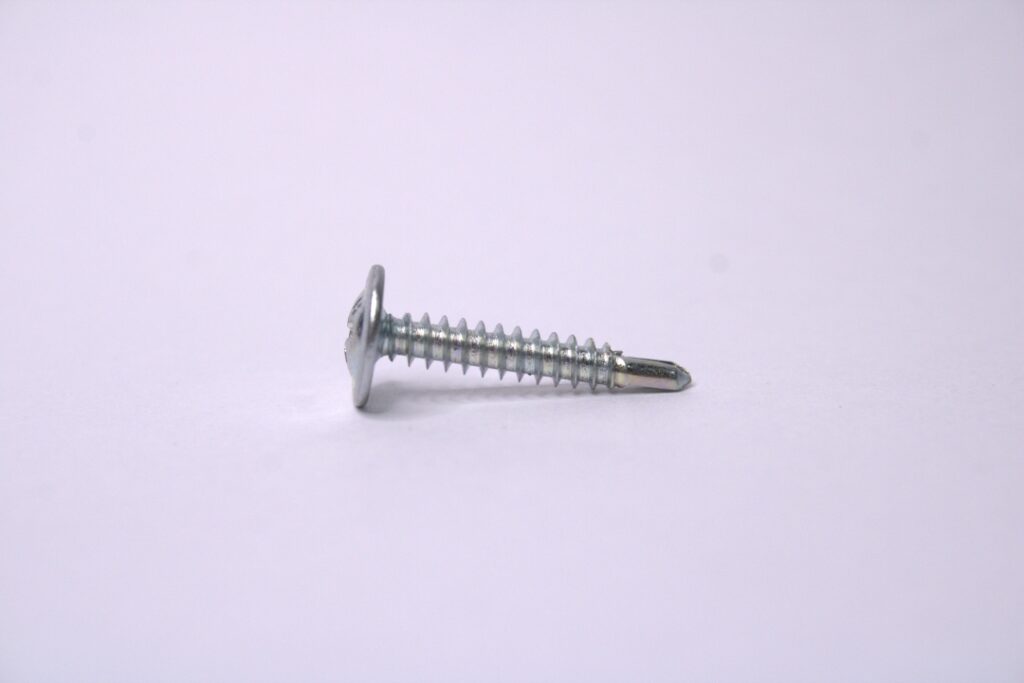

Truss Head Self-Drilling Screws
Characterized by a wide and flat head.
Choose KALPTARU ENTERPRISE for high-quality “PTH” Self Drilling Screws: tailored to your requirements.
